John's PWM based on my design
John built this Pulse Width Modulator based on my plans entirely by hand on perf board just like my first prototype. He even managed to squeeze C7 inside the Veleman G-106 case by moving the MOSFET closer to the center. Very well done sir!
Related links

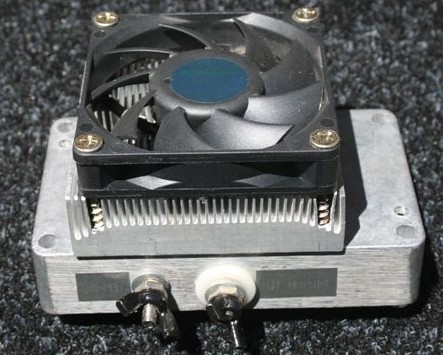

Assembled outside view

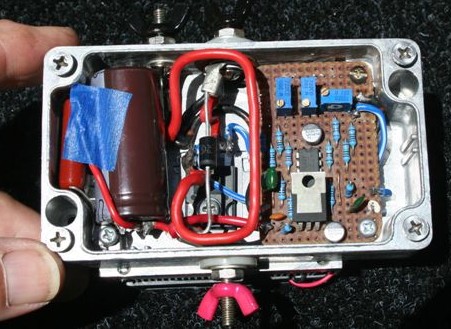

Inside view with C7 built in. Nicely done!
